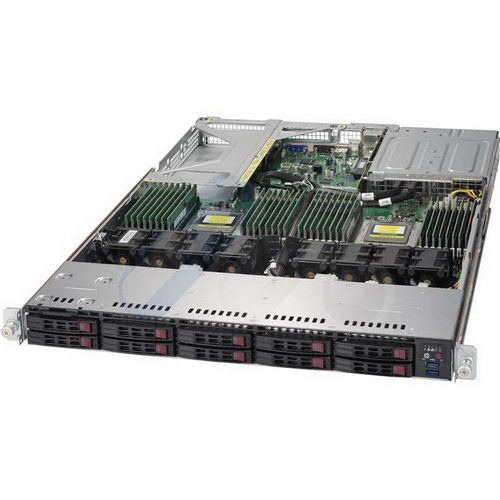

A+ Server 1123US-TR4 AS-1123US-TR4 от Supermicro

Заказать в один клик
* Внимание! Мы не работаем с физическими лицами
Цена:557 245.61 руб. 6 735.00 USD
Артикул: AS-1123US-TR4Подобрать аналог
Производитель: Supermicro


Характеристики AS-1123US-TR4

Product SKUs
AS -1123US-TR4
  • A+ Server 1123US-TR4
Motherboard

H11DSU-iN
Processor/Chipset
CPU
  • Dual AMD EPYC™ 7001/7002* series Processors
    (* Board revision 2.x required)
  • Socket SP3
  • Supports CPU cTDP up to 280W**
Cores
  • Up to 32 Cores (Board revision 1.x + 7001 Processors)
  • Up to 64 Cores (Board revision 2.x + 7002 Processors)
Chipset
  • System on Chip (SoC)
Note** Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory
Memory Capacity
  • 32 DIMM slots
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
  • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
  • 8-channel memory bus
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
    (* Board revision 2.x required + 7002 Processors)
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
VGA
  • ASPEED AST2500 BMC
Expansion Slots
1U
  • 2 PCI-E x16 (FH/HL 9.5") slots
  • 2 PCI-E x8 slots (1 LP, 1 internal proprietary LP slot)


(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Input / Output
SATA
  • 10 SATA3 (6 Gbps) ports
LAN
  • Quad Gigabit LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
VGA
  • 1 VGA port
SAS
  • 8 SAS3 ports support via optional Add-on Card
NVMe
  • 2 NVMe support with optional cables
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • TPM 1.2 header
System BIOS
BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Chassis
Form Factor
  • 1U
Model
  • CSE-119UTS-R1K02P-T
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 28.5" (724mm)
Package
  • 8.19" (H) 23.86" (W) 36.14" (D)
Weight
  • Net Weight: 26 lbs (11.8 kg)
  • Gross Weight: 41 lbs (18.6 g)
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Drive Bays
Hot-swap
  • 10 2.5" hot-swap SATA3
    or 8 SATA3 + 2 NVMe drive bays (optional)
Backplane
HDD Backplane
  • Supports 10 SATA3 or 8 SATA3 + 2NVMe or 8 SAS3 + 2 SATA3 HDD
System Cooling
Fans
  • 8 heavy-duty PWM fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud
Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power
  • 800W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
  • 200-240Vdc / 7 - 5A (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
  • Max: 83A / Min: 0A (200-240Vdc)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
CertificationTitanium Level
[ Test Report ]
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
FAN
  • Up to 8-fan status tachometer monitoring
  • Up to eight 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 8x Fan connectors
  • I2C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
