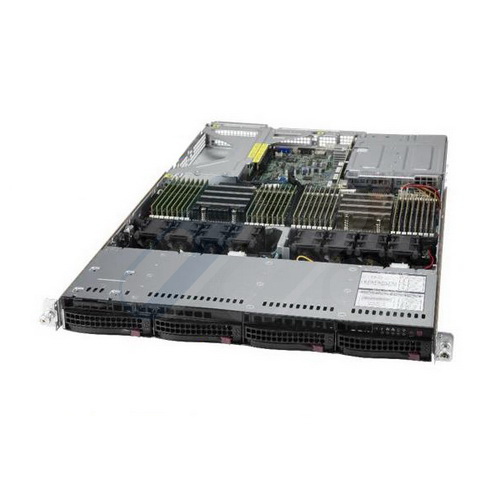

A+ Server 1024US-TRT AS-1024US-TRT от Supermicro

Заказать в один клик
* Внимание! Мы не работаем с физическими лицами
Цена:612 597.85 руб. 7 404.00 USD
Артикул: AS-1024US-TRTПодобрать аналог
Производитель: Supermicro


Характеристики AS-1024US-TRT

Product SKUs
AS -1024US-TRT
  • A+ Server 1024US-TRT
Motherboard
H12DSU-iN
Processor/Chipset
CPU
  • Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W*
Cores
  • Up to 64 Cores
Chipset
  • System on Chip (SoC)
Note* Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory
Memory Capacity
  • 32 DIMM slots
  • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
  • 8-channel memory bus
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
VGA
  • ASPEED AST2500 BMC
Expansion Slots
1U
  • 2 PCI-E 4.0 x16 (FH/HL 9.5") slots
  • 1 PCI-E 4.0 x16 (LP) slot
  • 1 PCI-E 4.0 x16 (internal proprietary LP slot)


(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Input / Output
SATA
  • 4 SATA3 (6 Gbps) ports
LAN
  • Dual 10GBase-T LAN ports via Intel® X710-AT2
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
VGA
  • 1 VGA port
SAS
  • 4 SAS3 ports support via optional SAS kit
NVMe
  • 4 NVMe support via optional drive tray
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • TPM 1.2 header
System BIOS
BIOS Type
  • AMI 128Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Chassis
Form Factor
  • 1U
Model
  • CSE-819UTS-R1K02P-A
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 29" (737mm)
Package
  • 7.8" (H) 23.66" (W) 37.13" (D)
Weight
  • Net Weight: 26 lbs (11.8 kg)
  • Gross Weight: 41 lbs (18.6 kg)
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Drive Bays
Hot-swap
  • 4 Hot-swap 3.5" SATA3 drive bays
Backplane
HDD Backplane
  • Supports 4 SATA3 or 4 NVMe or 4 SAS3 HDD
System Cooling
Fans
  • 8 heavy-duty PWM fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud
Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power
  • 800W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
  • 200-240Vdc / 7 - 5A (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
  • Max: 83A / Min: 0A (200-240Vdc)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level
[ Test Report ]
PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
  • CPU switching voltage regulator
FAN
  • Up to 8-fan status tachometer monitoring
  • Up to eight 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 8x Fan connectors
  • I?C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)*
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
Note* Support for operating 35°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details.
